Product Details:

Power Range	0.37kw – 45kW
Speed	2900 rpm
Degree of protection	IP 55
Class of insulation	"F"
Direction of Rotation	Clockwise when viewed from motor end
Type of duty	S1 (Continuous)
Three Phase	380-415 V, 50 Hz, A.C. Supply
Sealing	Mechanical Seal
Nominal Suction x Delivery size in mm	25 x 25, 32 x 32, 50 x 50, 75 x 75,100 x 100
Max. Casing Working pressure	1600 kPa
Temperature of pumped fluid	4 to 70

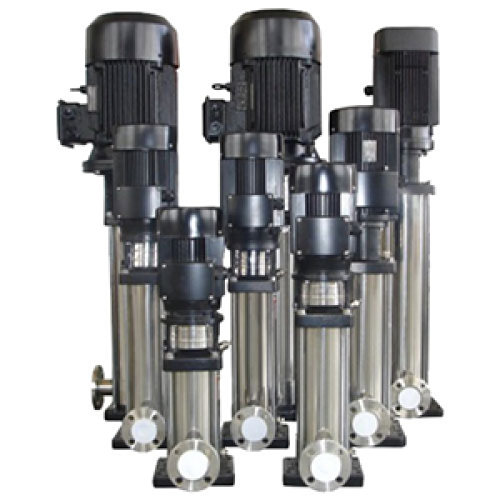

     "PEW" Multistage Vertical Centrifugal Pumps (PW series) are non self priming with inline design for ease of installation in constricted spaces. The suction and delivery ports are of same size and in the same horizontal plane. The mechanical seal and bearings are lubricated by the pumped liquid. All components like impellers, diffuser and shaft are made of corrosion resistant stainless steel and designed to deliver the best possible hydraulic efficiency.

     Excessive Axial thrust is balanced by assembling the pump stages with equal number of opposed impellers. Balancing of axial thrust allows the use of standard flange mounted motors without special bearings. Working pressure on mechanical seal reduces to half, due to opposed impellers. The shaft is well supported by bush bearings ensuring noiseless operation.



Features:

• Dynamically balanced rotating parts ensure vibration free and noise less operation
• Good quality raw materials & hydraulic design facilitate longer life with high efficiency.
• Bottom casing fitted with Tungsten carbide bushes
• The in-line port design and compact footprint of these pumps allows for a clean installation.
• All models feature a shaft seal that can be replaced easily without the need to disassemble the entire pump.
• Pumps are equipped with high efficiency closed impellers,
• Pumps can be used for clear, non-abrasive, non-flammable liquids compatible with pump component materials.



Applications:

These commercial/industrial centrifugal pumps are non-self-priming (gravity feed) units designed to handle high-pressure/low-flow liquid transfer applications where no suction lift is required. Typical installations include :-

• Hot and chilled water transfer,
• Boiler feed,
• Condensate return,
• Irrigation,
• Domestic and flushing systems in residential/ commercial complexes,
• Booster service, and
• Sprinkler systems.
