Product Details:

Material of Fire Fighting Equipment	Cast Iron
Installation Type	No
Condition	New
Nozzle Material	Gun Metal
Usage/Application	Industrial
Automation Grade	Automatic
Color	RED
Mounted	FOOT



Operating reliability is the decisive criterion for fire protection systems. Perfectly functioning products are the guarantee that water will be delivered to put out a fire. We not only provide our customers with pumps but also all other equipment forming part of a fixed system for fire-fighting. We offer the necessary sprinkler pumps, pressure booster systems and all-in solutions from a single source. This shows once more that PEW can provide both custom-engineered solutions and standard systems.

All our NFPA rated fire pumps are capable of furnishing not less than 150% of rated capacity at head not less than 65% of the rated head. The shut off head does not exceed 120% of rated head.



Principle of Operation:

The fire pump starts when the pressure in the fire sprinkler system drops below a threshold. The sprinkler system pressure drops significantly when one or more fire sprinklers are exposed to heat above their design temperature and subsequently open, releasing water. Alternately other fire hoses, reels or other fire fighting connections are opened, causing a pressure drop in the fire fighting main.

All these pumps broadly fall into 5 categories:

• • Main hydrant pump
  • Sprinkler pump
  • Jockey pump
  • Booster pump
  • Drencher pump

• PEW FIRE FIGHTING PUMPS ENCOMPASSES THE FOLLOWING TYPES OF PUMPS:-
• Multistage Submersible Fire-fighting Pump.
• Single-stage back pull out end suction Fire-fighting Pump.
• Horizontal / Vertical Multi-stage Fire-fighting Pump.
• Vertical Multi-stage, Inline Fire-fighting Pump.
• Horizontal Split Case single / double suction Fire-fighting Pump.

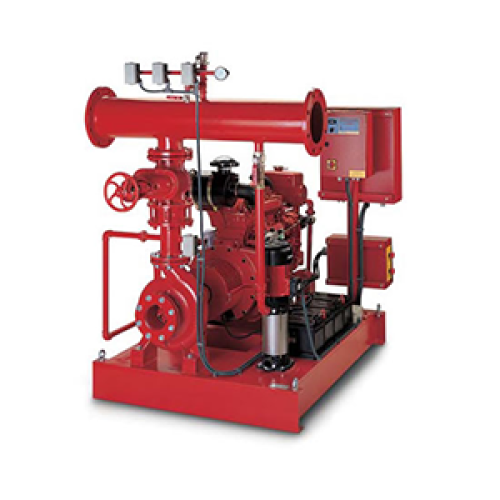

• Diesel Engine Fire-fighting Pump Unit.
• Complete Fire-fighting Water Supply Equipment.

PEW provides complete fire fighting system along with diaphragm tanks, control panels, mounting stands, pressure switches, valves, headers and pipings. Controllers can be supplied free standing or mounted on the base plate, completely wired and connected to a single or multi-pump system.



Specifications:

Max head	Upto 320 m
Max discharge	Upto 15000 LPM
Max drive rating	Upto 300 hp
Single and multistage
Horizontally and Vertically mounted
Single and multioutlet
Max Outlet size	150 mm
Submersible and Centrifugal type.

Applications:

• Fire fighting systems in
• Residential / commercial structures
• Warehouses
• Hospitals, Malls, etc,
• Industries and Industrial complexes
• Refineries, Port trusts, etc.
