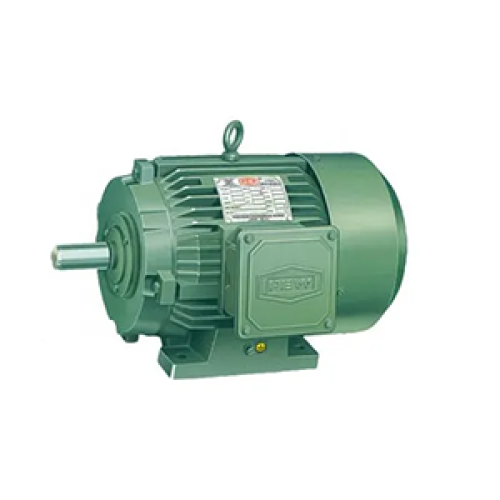

“PEW’’ Started During 1974 in a small workshop of electric motor and pumps set “PEW” has been a reputed manufacturer of a wide range of quality motors up to 280 frame. All motors are manufactured in quality Assurance systems compliant with ISO 9001-2008. The motors comply with the regulation and standard consistent with IS & IEC Standard “PEW” offers wide range squirrel cage induction motor ranging from  0.125KW to 110 KW in Three Phase.





Features:

• The New in House Production facility allows us to add up all our strengths as a base for seamlessly interlinking processes right from from cutting, Processes, testing up to Packing and dispatch
• We achieve the quality by procuring the important raw materials from quality manufacturers
• The Process Quality is maintained by processing all the components In - house in our well equipped manufacturing unit
• Due to in house process the quality is controlled at every stage which ensures quality of the final product
• The faster delivery is achieved through Flexible Manufacturing System.
• Computerized testing Facilities Which includes Routine Test, type or any other test which ensures that Customer receives a rigid and reliable Product
• Sealed Bearings are provided for motors up to 225 frames, Grease Lubricated bearings are used on frames 250 to 280.
• Shaft is of  high grade steel and of appropriate diameters to withstand the bending and tension stresses.
• Motors are provided with single / Double shaft extension, Special Shaft extension like: a. Change diameter and length b. Taper shaft with threaded ends c. Any other special shaft extensions are available on request…..
• Motor suitable for different ambient temperatures within the range of 20 C to + 60 C can be offered
• Customized specialties in mountings, Non standard paint shades & Anti Condensation space heaters thermistors can be offered
• Motor capable of Continuous operation at their rated power with a temperature rise within the specified insulation temperature Class.





Product Details:

Range	0.25 HP to 150 HP (3 Phase)
RPM	3000, 1500, 1000, 750 ( Synchronous)
Mounting	1. Foot B3, B6, B7, B8, V5, V6,  2. Flange B5, V1, V3 3. Face B14, V18, V19 4. Combinations
Frame	63 to 280
Insulation	Class B / Class F / Class H
Degree of Protection	IP 55, IP 65
Voltage	100V to 650V
Frequency	15Hz to 60Hz
Ambient Temperature	-20 C to +60 C
Type of Enclosures	Totally Enclosed Fan Cooled (TEFC)





Application:

• Machine Tool Industry
• Textile Industry
• Air Conditioning Plants
• Dairy Equipments
• Material Handling Equipment
• Pollution Control Equipment
• Packing Machineries
• Cooling Tower
• Construction Industry
• Paper Industry
• Steel Industry, etc.
